Navigate Encompass ELD New UI Changes

Purpose

This article highlights the updated user interface changes in the Encompass® ELD mobile application, covering the Dashboard, Login Duty Status Selection, and View Log screens for both Android and iOS devices.

When to Use This Article

• A driver needs to understand what changed in the updated Encompass® ELD app interface.
• A driver or administrator wants to know where controls and features moved in the new UI.
• A support agent needs to guide a driver through the updated screens.

Steps to Follow

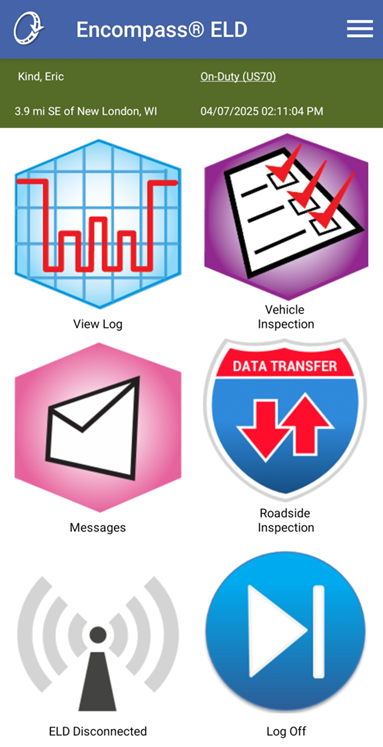

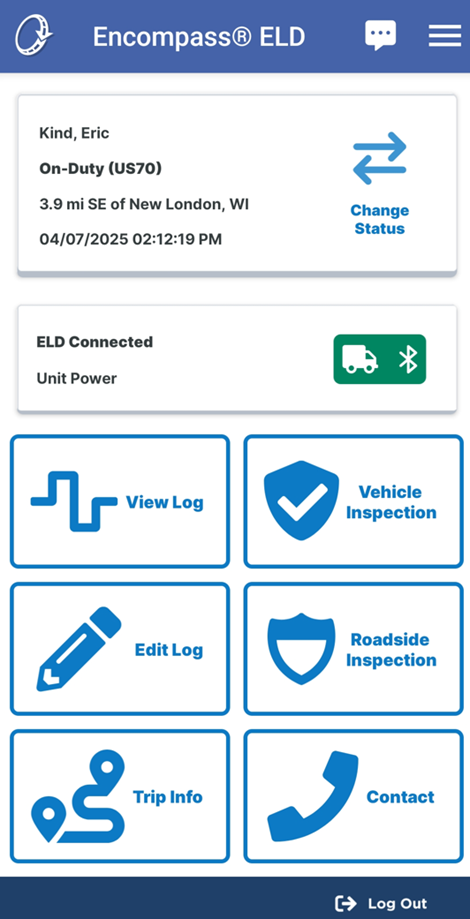

Dashboard Screen

PREVIOUS vs. CURRENT/UPDATED

Notable features:

• Informative status card with large selectable "Change Status" button.
• Easy to understand "ELD Connected" card (ELD Status Icon). For more information on the ELD Status icon, click here.
• Most used option cards:
  • View Log.
  • Edit Log (now single touch - previously multiple touches). For more information about editing logs, click here for Android or here for iOS.
  • Trip Info (now single touch - previously multiple touches).
  • Vehicle Inspection (DVIRs).
  • Roadside Inspection.
  • Contact.
  • Messages moved to the top header as a messaging balloon.
  • Logout moved to the bottom per driver feedback. For more information on certifying logs and logging out, click here.

Log in Duty Status Selection

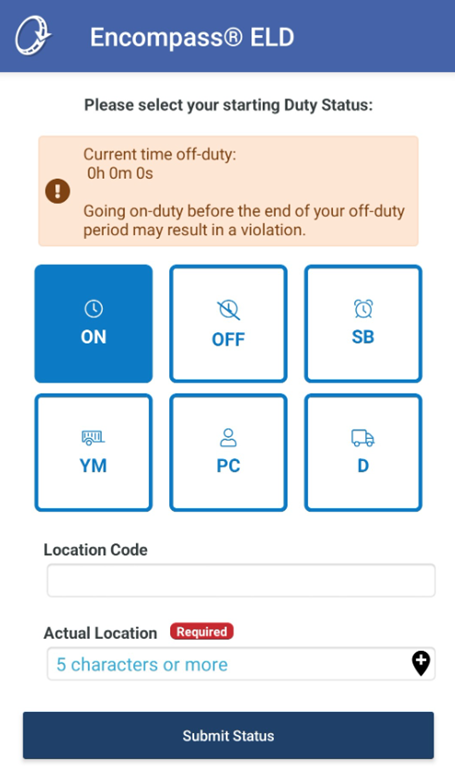

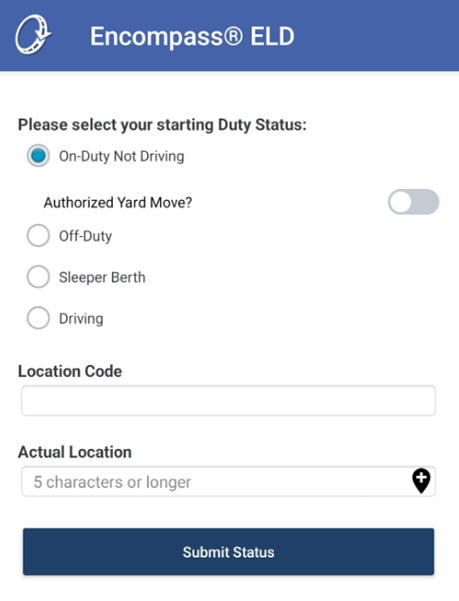

Android

PREVIOUS vs. CURRENT/UPDATED

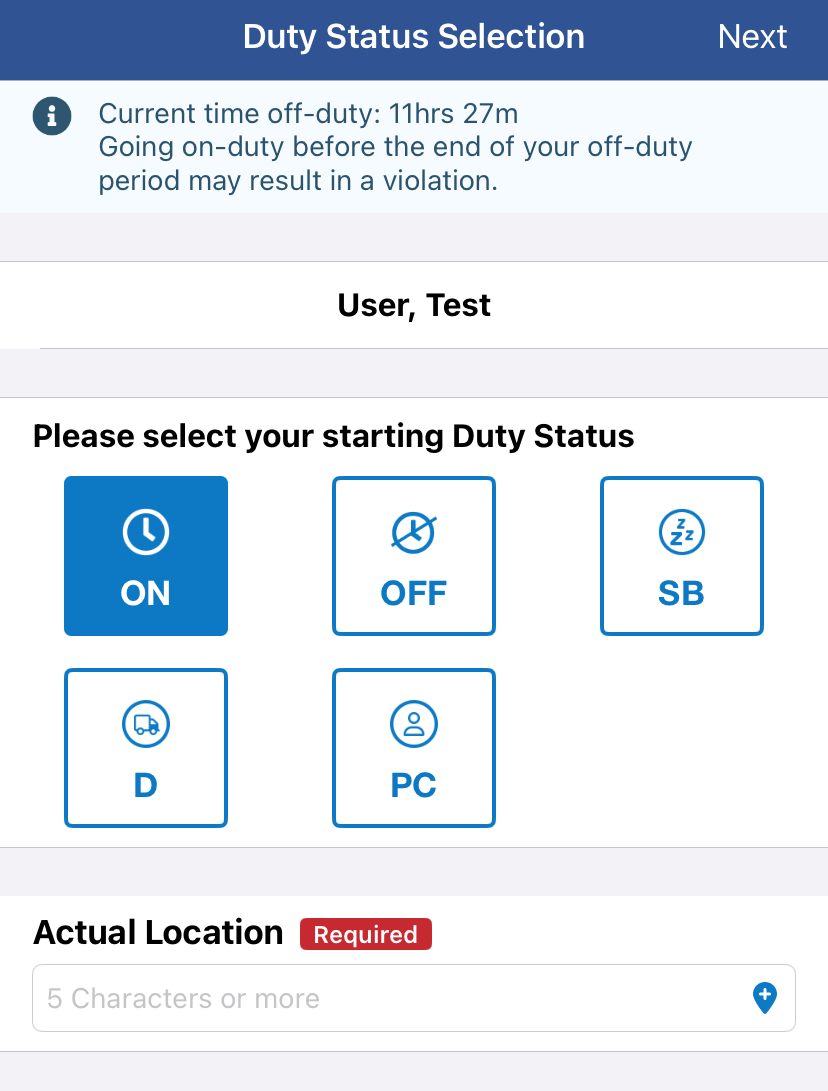

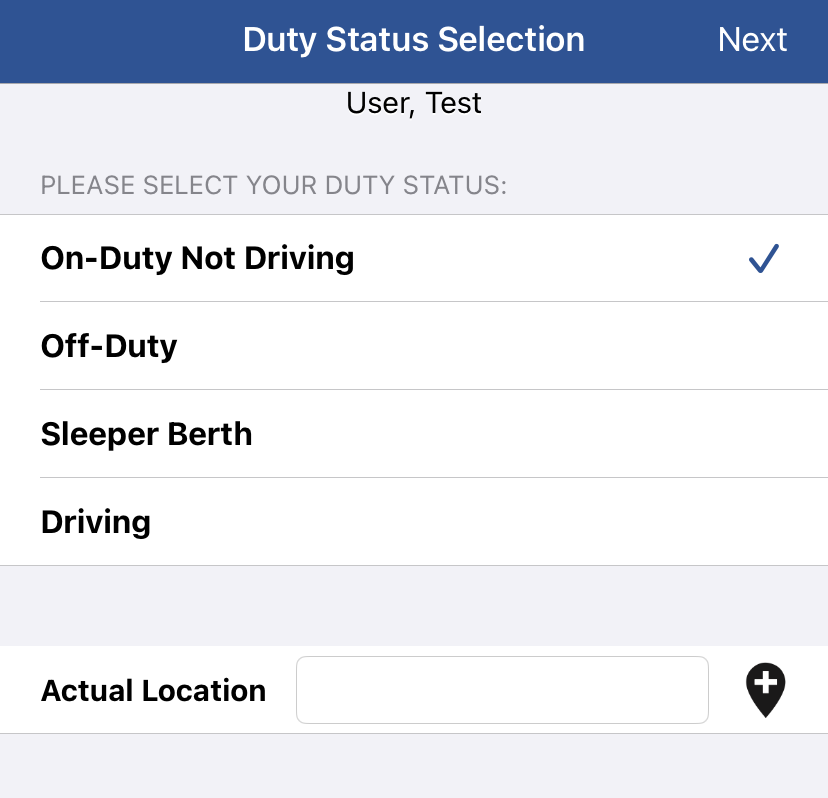

iOS

PREVIOUS vs. CURRENT/UPDATED

Notable features:

• One touch UI:
  • If the driver taps YM then ON automatically selects with it.
  • If the driver taps PC then OFF automatically selects with it.
• Easy to understand large "cards" for quick selection.
• Dynamic alert notifying Drivers how much time they have been Off Duty to help avoid accidentally starting a shift early.

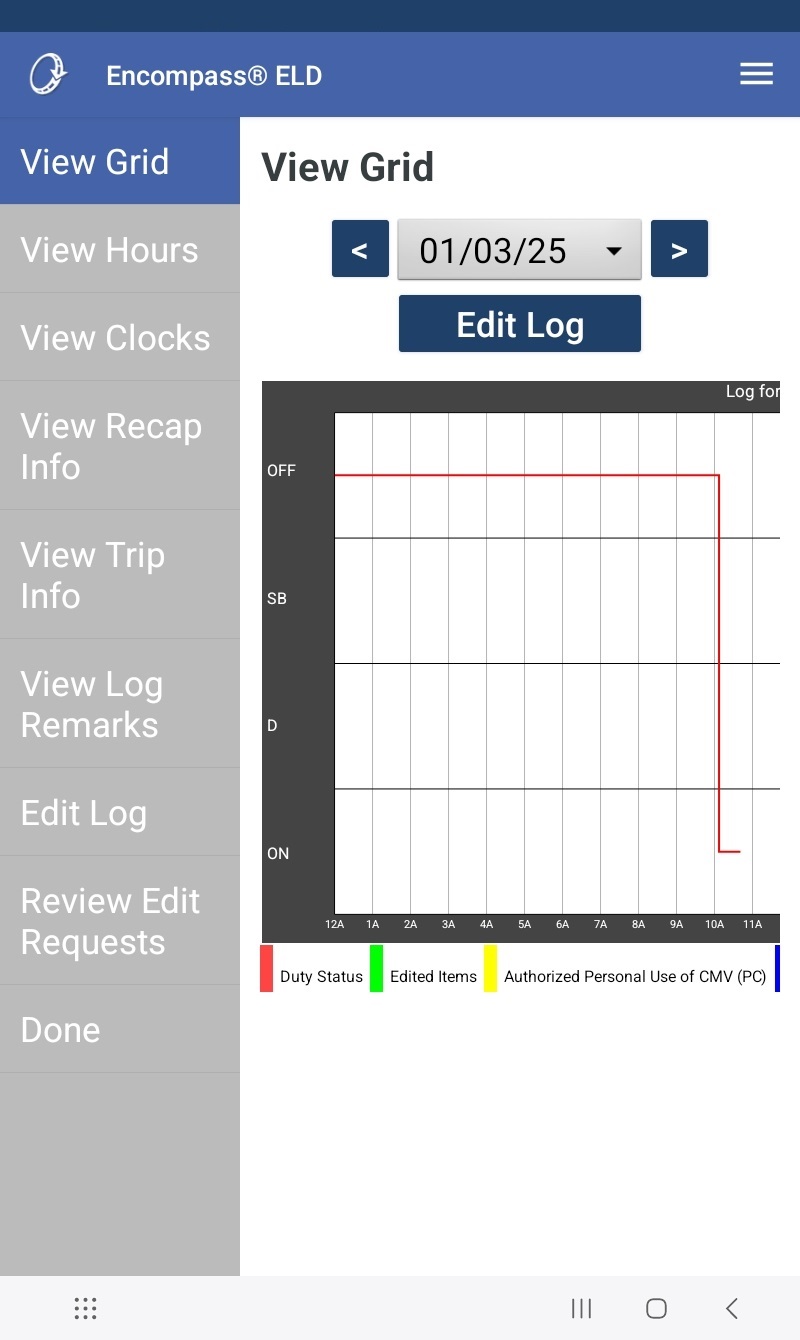

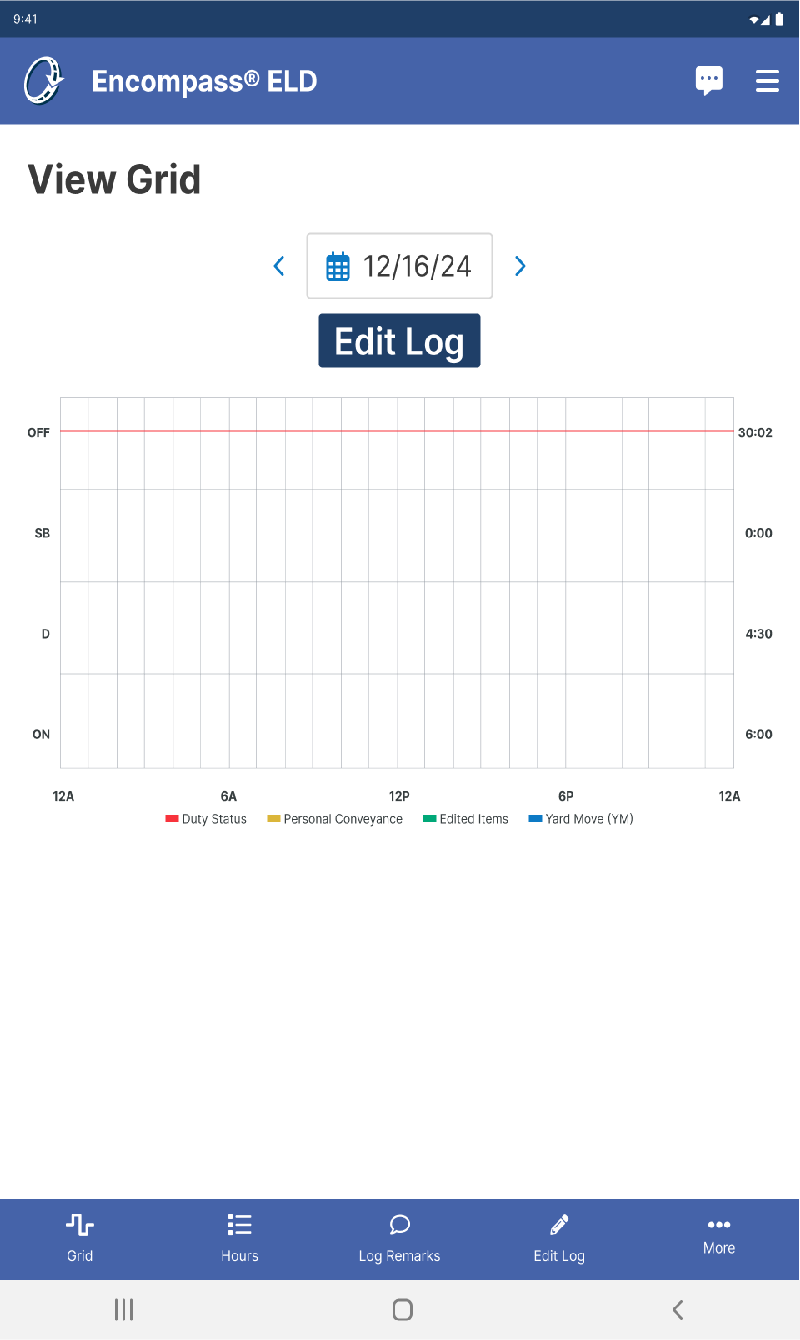

View Log - Android

PREVIOUS vs. CURRENT/UPDATED

Notable features:

• Updated UI:
  • Enhanced grid view to allow for full screen.
  • Moved side navigation bar to the bottom.
  • Aligns with iOS implementation.
• Navigation: Users can select the back arrow on their device OR select the Encompass ELD logo in the top-left corner.

What Not to Do / Common Pitfalls

• Do not look for the Logout button in its previous location—it has moved to the bottom of the dashboard.
• Do not look for Messages in the main menu—it is now a messaging balloon icon in the top header.
• Do not expect the side navigation bar on Android View Log—it has moved to the bottom to align with iOS.

Escalation Path

1. Driver reviews this article for guidance on the updated UI.
2. If the driver cannot locate a feature, contact the Encompass support team for assistance.
